Note: Please toggle between ‘Show’ and ‘Hide’ above based on your preference for viewing the R codes.

8.1 Overview

8.1.1 Objectives

In this in-class exercise, you will gain hands-on experience on using appropriate R methods to plot analytical maps.

8.1.2 Learning Outcome

By the end of this in-class exercise, you will be able to use appropriate functions of tmap and tidyverse to perform the following tasks:

Importing geospatial data in rds format into R environment.
Creating cartographic quality choropleth maps by using appropriate tmap functions.
Creating rate map
Creating percentile map
Creating boxmap

8.2 Getting Started

8.2.1 Installing and loading Packages

Code

pacman::p_load(tmap, tidyverse, sf)

8.2.2 Importing Data

For the purpose of this hands-on exercise, a prepared data set called NGA_wp.rds will be used. The data set is a polygon feature data.frame providing information on water point of Nigeria at the LGA level. You can find the data set in the rds sub-direct of the hands-on data folder.

Code

NGA_wp <- read_rds("data/rds/NGA_wp.rds")

8.3 Basic Choropleth Mapping

8.3.1 Visualising distribution of non-functional water point

Ploting a choropleth map showing the distribution of non-function water point by LGA.

Code

p1 <- tm_shape(NGA_wp) +
  tm_polygons(fill = "wp_functional",
             fill.scale = tm_scale_intervals(
               style = "equal",
               n = 10,
               values = "brewer.blues"),
             fill.legend = tm_legend(
               position = c("right", "bottom"))) +
  tm_borders(lwd = 0.1,
             fill_alpha = 1) +
  tm_title("Distribution of functional water point by LGAs")

Code

p2 <- tm_shape(NGA_wp) +
  tm_polygons(fill = "total_wp",
              fill.scale = tm_scale_intervals(
                style = "equal",
                n = 10,
                values = "brewer.blues"),
              fill.legend = tm_legend(
                position = c("right", "bottom"))) +
  tm_borders(lwd = 0.1,
             fill_alpha = 1) +
  tm_title("Distribution of total  water point by LGAs")

Code

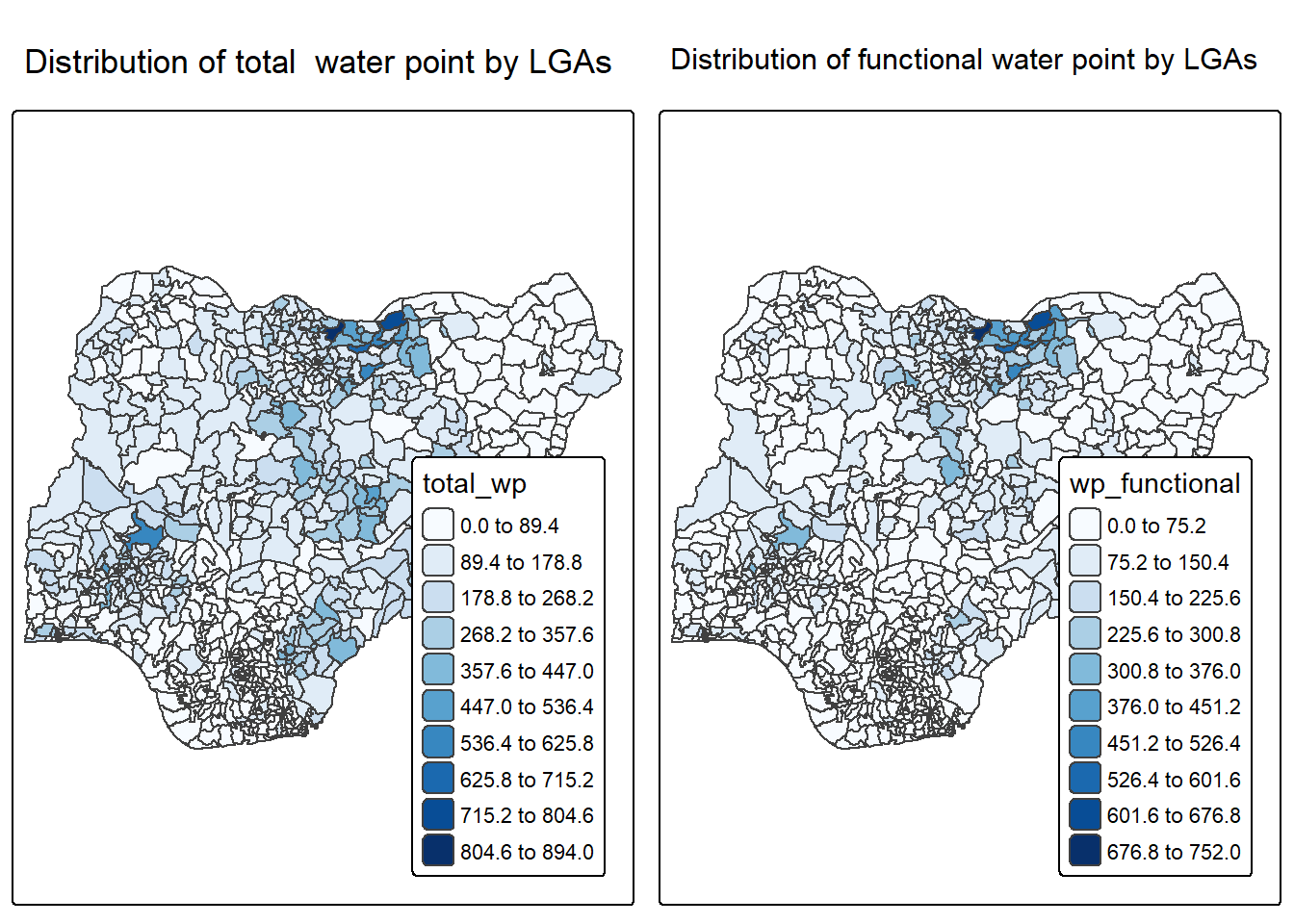

tmap_arrange(p2, p1, nrow = 1)

8.4 Choropleth Map for Rates

In much of our readings we have now seen the importance to map rates rather than counts of things, and that is for the simple reason that water points are not equally distributed in space. That means that if we do not account for how many water points are somewhere, we end up mapping total water point size rather than our topic of interest.

8.4.1 Deriving Proportion of Functional Water Points and Non-Functional Water Points

We will tabulate the proportion of functional water points and the proportion of non-functional water points in each LGA. In the following code chunk, mutate() from dplyr package is used to derive two fields, namely pct_functional and pct_nonfunctional.

Code

NGA_wp <- NGA_wp %>%
  mutate(pct_functional = wp_functional/total_wp) %>%
  mutate(pct_nonfunctional = wp_nonfunctional/total_wp)

8.4.2 Plotting map of rate

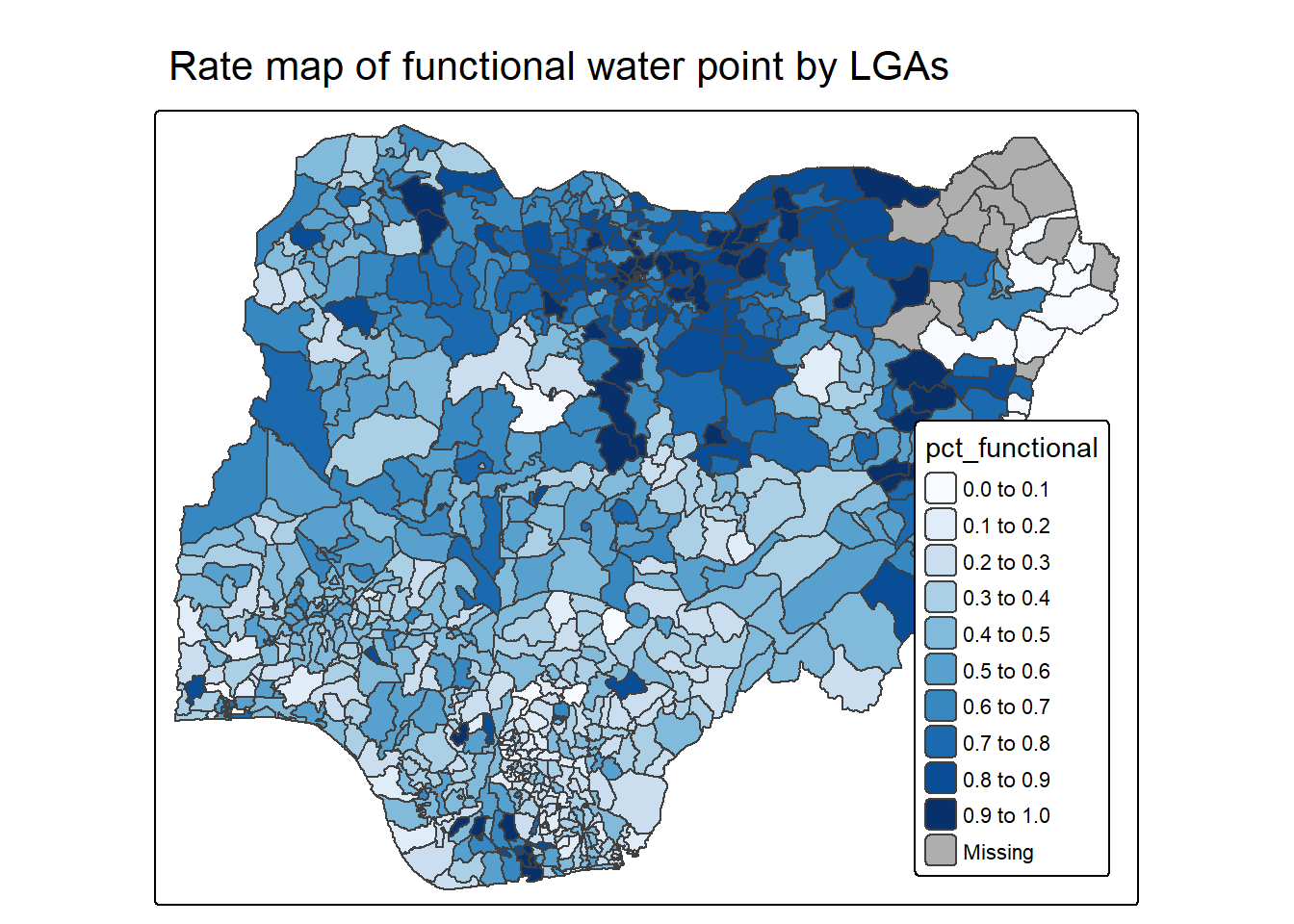

Plotting a choropleth map showing the distribution of percentage functional water point by LGA.

Code

tm_shape(NGA_wp) +
  tm_polygons("pct_functional",
              fill.scale = tm_scale_intervals(
                style = "equal",
                n = 10,
                values = "brewer.blues"),
              fill.legend = tm_legend(
                position = c("right", "bottom"))) +
  tm_borders(lwd = 0.1,
             fill_alpha = 1) +
  tm_title("Rate map of functional water point by LGAs")

8.5 Extreme Value Maps

Extreme value maps are variations of common choropleth maps where the classification is designed to highlight extreme values at the lower and upper end of the scale, with the goal of identifying outliers. These maps were developed in the spirit of spatializing EDA, i.e., adding spatial features to commonly used approaches in non-spatial EDA (Anselin 1994).

8.5.1 Percentile Map

The percentile map is a special type of quantile map with six specific categories: 0-1%,1-10%, 10-50%,50-90%,90-99%, and 99-100%. The corresponding breakpoints can be derived by means of the base R quantile command, passing an explicit vector of cumulative probabilities as c(0,.01,.1,.5,.9,.99,1). Note that the begin and endpoint need to be included.

8.5.1.1 Data Preparation

Step 1: Exclude records with NA by using the code chunk below.

Code

NGA_wp <- NGA_wp %>%
  drop_na()

Step 2: Creating customised classification and extracting values

Code

percent <- c(0,.01,.1,.5,.9,.99,1)
var <- NGA_wp["pct_functional"] %>%
  st_set_geometry(NULL)
quantile(var[,1], percent)

       0%        1%       10%       50%       90%       99%      100%
0.0000000 0.0000000 0.2169811 0.4791667 0.8611111 1.0000000 1.0000000

When variables are extracted from an sf data.frame, the geometry is extracted as well. For mapping and spatial manipulation, this is the expected behavior, but many base R functions cannot deal with the geometry. Specifically, the quantile() gives an error. As a result st_set_geomtry(NULL) is used to drop geomtry field.

8.5.1.2 Why writing functions?

Writing a function has three big advantages over using copy-and-paste:

You can give a function an evocative name that makes your code easier to understand.
As requirements change, you only need to update code in one place, instead of many.
You eliminate the chance of making incidental mistakes when you copy and paste (i.e. updating a variable name in one place, but not in another).

Source: Chapter 19: Functions of R for Data Science.

8.5.1.3 Creating the get.var function

Firstly, we will write an R function as shown below to extract a variable (i.e. wp_nonfunctional) as a vector out of an sf data.frame.

arguments:
- vname: variable name (as character, in quotes)
- df: name of sf data frame
returns:
- v: vector with values (without a column name)

Code

get.var <- function(vname,df) {
  v <- df[vname] %>%
    st_set_geometry(NULL)
  v <- unname(v[,1])
  return(v)
}

8.5.1.4 A percentile mapping function

Next, we will write a percentile mapping function by using the code chunk below.

Code

percentmap <- function(vnam, df, legtitle=NA, mtitle="Percentile Map"){
  percent <- c(0,.01,.1,.5,.9,.99,1)
  var <- get.var(vnam, df)
  bperc <- quantile(var, percent)
  tm_shape(df) +
  tm_polygons() +
  tm_shape(df) +
     tm_polygons(vnam,
             title=legtitle,
             breaks=bperc,
             palette="Blues",
          labels=c("< 1%", "1% - 10%", "10% - 50%", "50% - 90%", "90% - 99%", "> 99%"))  +
  tm_borders() +
  tm_layout(main.title = mtitle,
            title.position = c("right","bottom"))
}

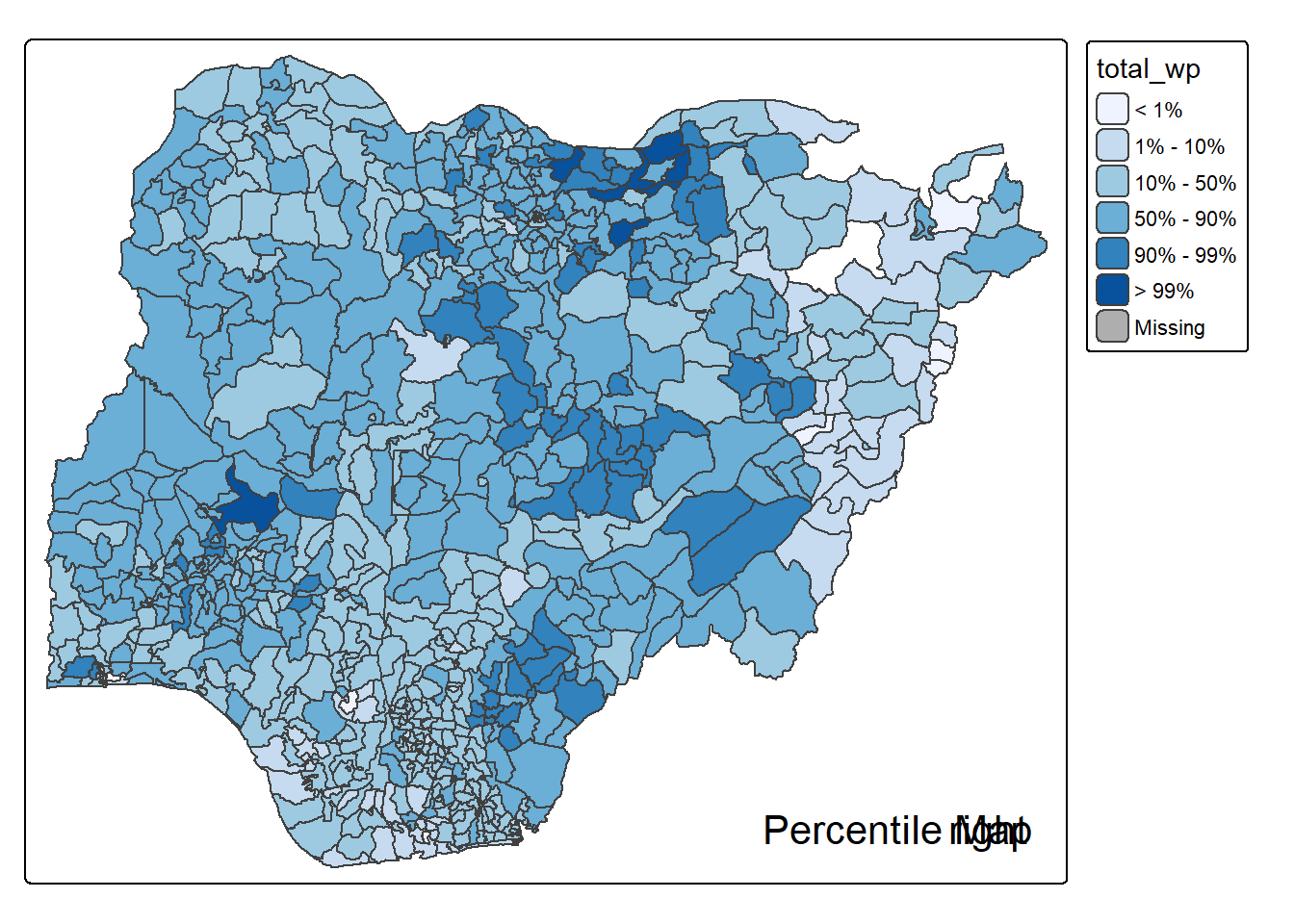

8.5.1.5 Test drive the percentile mapping function

To run the function, type the code chunk as shown below.

Code

percentmap("total_wp", NGA_wp)

Note that this is just a bare bones implementation. Additional arguments such as the title, legend positioning just to name a few of them, could be passed to customise various features of the map.
