10.1 Overview

By the end of this hands-on exercise, you will be able to:

  • create bullet chart by using ggplot2,

  • create sparklines by using ggplot2 ,

  • build industry standard dashboard by using R Shiny.

10.2 Getting Started

For the purpose of this hands-on exercise, the following R packages will be used.

  • tidyverse provides a collection of functions for performing data science task such as importing, tidying, wrangling data and visualising data. It is not a single package but a collection of modern R packages including but not limited to readr, tidyr, dplyr, ggplot, tibble, stringr, forcats and purrr.

  • lubridate provides functions to work with dates and times more efficiently.

  • ggthemes is an extension of ggplot2. It provides additional themes beyond the basic themes of ggplot2.

  • gtExtras provides some additional helper functions to assist in creating beautiful tables with gt, an R package specially designed for anyone to make wonderful-looking tables using the R programming language.

  • reactable provides functions to create interactive data tables for R, based on the React Table library and made with reactR.

  • reactablefmtr provides various features to streamline and enhance the styling of interactive reactable tables with easy-to-use and highly-customizable functions and themes.

Code
pacman::p_load(lubridate, ggthemes, reactable,
reactablefmtr, gt, gtExtras, tidyverse)

10.3 Importing Data

For the purpose of this study, a personal database in Microsoft Access mdb format called Coffee Chain will be used.

In the code below, odbcConnectAccess() of RODBC package is used used to import a database query table into R. Note: Before running the code chunk, you need to change the R system to 32bit version. This is because the odbcConnectAccess() is based on 32bit and not 64bit

Code
library(RODBC)
con <- odbcConnectAccess2007('data/Coffee Chain.mdb')
coffeechain <- sqlFetch(con, 'CoffeeChain Query')
write_rds(coffeechain, "data/CoffeeChain.rds")
odbcClose(con)

10.4 Data Preparation

The code below is used to import CoffeeChain.rds into R.

Code
coffeechain <- read_rds("data/CoffeeChain.rds")

The code chunk below is used to aggregate Sales and Budgeted Sales at the Product level.

Code
product <- coffeechain %>%
  group_by(`Product`) %>%
  summarise(`target` = sum(`Budget Sales`),
            `current` = sum(`Sales`)) %>%
  ungroup()

10.5 Bullet Chart in ggplot2

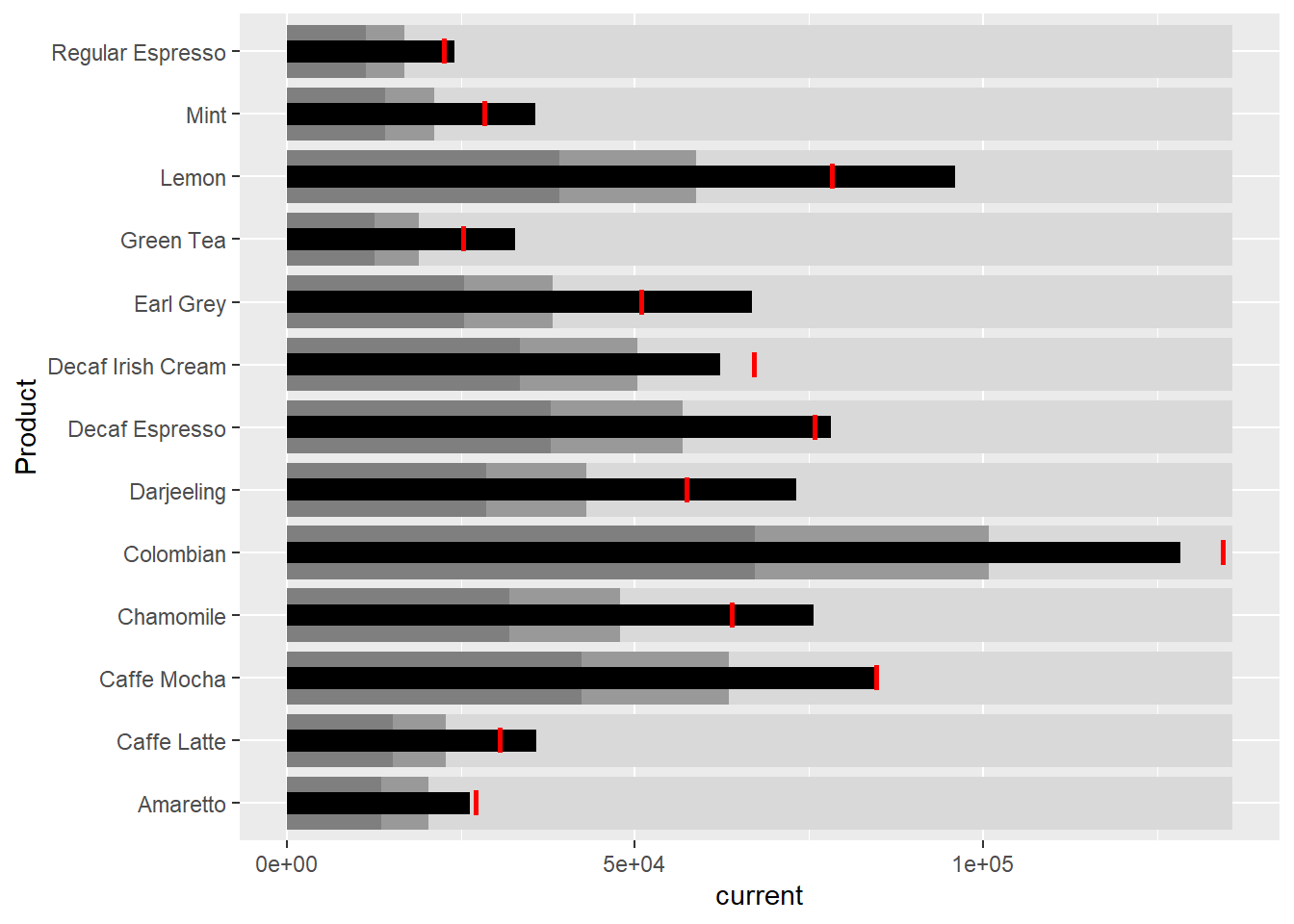

The code chunk below is used to plot the bullet charts using ggplot2 functions.

Code
ggplot(product, aes(Product, current)) +
  geom_col(aes(Product, max(target) * 1.01),
           fill="grey85", width=0.85) +
  geom_col(aes(Product, target * 0.75),
           fill="grey60", width=0.85) +
  geom_col(aes(Product, target * 0.5),
           fill="grey50", width=0.85) +
  geom_col(aes(Product, current),
           width=0.35,
           fill = "black") +
  geom_errorbar(aes(y = target,
                    x = Product,
                    ymin = target,
                    ymax= target),
                width = .4,
                colour = "red",
                size = 1) +
  coord_flip()

10.5 Plotting Sparklines using ggplot2

10.5.1 Preparing the data

Code
sales_report <- coffeechain %>%
  filter(Date >= "2013-01-01") %>%
  mutate(Month = month(Date)) %>%
  group_by(Month, Product) %>%
  summarise(Sales = sum(Sales)) %>%
  ungroup() %>%
  select(Month, Product, Sales)

The code below is used to compute the minimum, maximum and end othe the month sales.

Code
mins <- group_by(sales_report, Product) %>%
  slice(which.min(Sales))
maxs <- group_by(sales_report, Product) %>%
  slice(which.max(Sales))
ends <- group_by(sales_report, Product) %>%
  filter(Month == max(Month))

The code below is used to compute the 25 and 75 quantiles.

Code
quarts <- sales_report %>%
  group_by(Product) %>%
  summarise(quart1 = quantile(Sales,
                              0.25),
            quart2 = quantile(Sales,
                              0.75)) %>%
  right_join(sales_report)

10.5.2 sparklines in ggplot2

Code

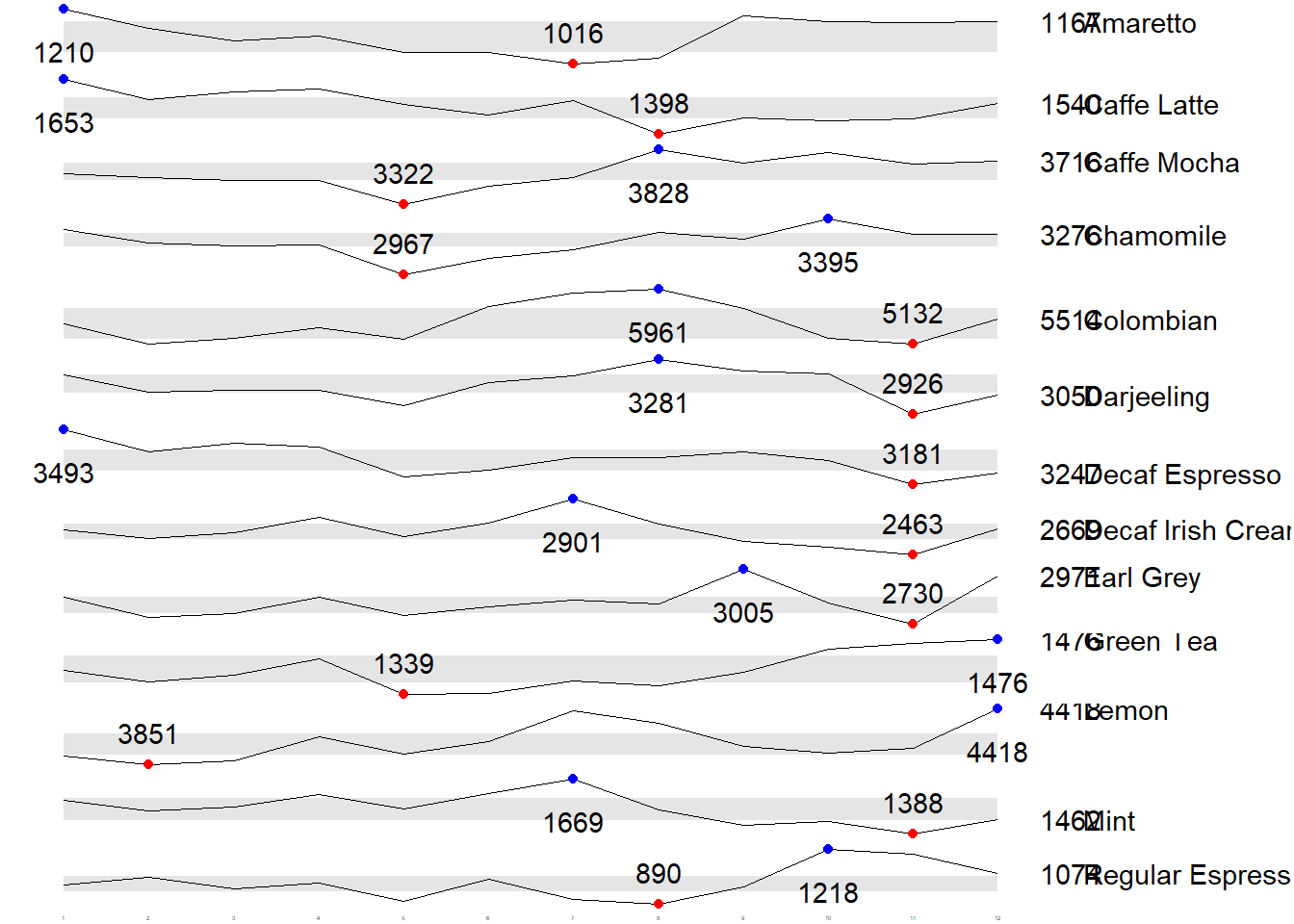

ggplot(sales_report, aes(x=Month, y=Sales)) +
  facet_grid(Product ~ ., scales = "free_y") +
  geom_ribbon(data = quarts, aes(ymin = quart1, max = quart2),
              fill = 'grey90') +
  geom_line(size=0.3) +
  geom_point(data = mins, col = 'red') +
  geom_point(data = maxs, col = 'blue') +
  geom_text(data = mins, aes(label = Sales), vjust = -1) +
  geom_text(data = maxs, aes(label = Sales), vjust = 2.5) +
  geom_text(data = ends, aes(label = Sales), hjust = 0, nudge_x = 0.5) +
  geom_text(data = ends, aes(label = Product), hjust = 0, nudge_x = 1.0) +
  expand_limits(x = max(sales_report$Month) +
                  (0.25 * (max(sales_report$Month) - min(sales_report$Month)))) +
  scale_x_continuous(breaks = seq(1, 12, 1)) +
  scale_y_continuous(expand = c(0.1, 0)) +
  theme_tufte(base_size = 3, base_family = "Helvetica") +
  theme(axis.title=element_blank(), axis.text.y = element_blank(),
        axis.ticks = element_blank(), strip.text = element_blank())

10.6 Static Information Dashboard Design: gt and gtExtras methods

In this section, you will learn how to create static information dashboard by using gt and gtExtras packages. Before getting started, it is highly recommended for you to visit the webpage of these two packages and review all the materials provided on the webpages at least once. You done not have to understand and remember everything provided but at least have an overview of the purposes and functions provided by them.

In this section, you will learn how to prepare a bullet chart report by using functions of gt and gtExtras packages.

Code
product %>%
  gt::gt() %>%
  gt_plt_bullet(column = current,
              target = target,
              width = 60,
              palette = c("lightblue",
                          "black")) %>%
  gt_theme_538()
Product current
Amaretto
Caffe Latte
Caffe Mocha
Chamomile
Colombian
Darjeeling
Decaf Espresso
Decaf Irish Cream
Earl Grey
Green Tea
Lemon
Mint
Regular Espresso

10.7 sparklines: gtExtras method

Before we can prepare the sales report by product by using gtExtras functions, code chunk below will be used to prepare the data.

Code
report <- coffeechain %>%
  mutate(Year = year(Date)) %>%
  filter(Year == "2013") %>%
  mutate (Month = month(Date,
                        label = TRUE,
                        abbr = TRUE)) %>%
  group_by(Product, Month) %>%
  summarise(Sales = sum(Sales)) %>%
  ungroup()

It is important to note that one of the requirement of gtExtras functions is that almost exclusively they require you to pass data.frame with list columns. In view of this, code chunk below will be used to convert the report data.frame into list columns.

Code
report %>%
  group_by(Product) %>%
  summarize('Monthly Sales' = list(Sales),
            .groups = "drop")
# A tibble: 13 × 2
   Product           `Monthly Sales`
   <chr>             <list>
 1 Amaretto          <dbl [12]>
 2 Caffe Latte       <dbl [12]>
 3 Caffe Mocha       <dbl [12]>
 4 Chamomile         <dbl [12]>
 5 Colombian         <dbl [12]>
 6 Darjeeling        <dbl [12]>
 7 Decaf Espresso    <dbl [12]>
 8 Decaf Irish Cream <dbl [12]>
 9 Earl Grey         <dbl [12]>
10 Green Tea         <dbl [12]>
11 Lemon             <dbl [12]>
12 Mint              <dbl [12]>
13 Regular Espresso  <dbl [12]>

10.7.1 Plotting Coffeechain Sales report

Code
report %>%
  group_by(Product) %>%
  summarize('Monthly Sales' = list(Sales),
            .groups = "drop") %>%
   gt() %>%
   gt_plt_sparkline('Monthly Sales',
                    same_limit = FALSE)
Product Monthly Sales
Amaretto 1.2K
Caffe Latte 1.5K
Caffe Mocha 3.7K
Chamomile 3.3K
Colombian 5.5K
Darjeeling 3.0K
Decaf Espresso 3.2K
Decaf Irish Cream 2.7K
Earl Grey 3.0K
Green Tea 1.5K
Lemon 4.4K
Mint 1.5K
Regular Espresso 1.1K

10.7.2 Adding statistics

First, calculate summary statistics by using the code chunk below.

Code
report %>%
  group_by(Product) %>%
  summarise("Min" = min(Sales, na.rm = T),
            "Max" = max(Sales, na.rm = T),
            "Average" = mean(Sales, na.rm = T)
            ) %>%
  gt() %>%
  fmt_number(columns = 4,
    decimals = 2)
Product Min Max Average
Amaretto 1016 1210 1,119.00
Caffe Latte 1398 1653 1,528.33
Caffe Mocha 3322 3828 3,613.92
Chamomile 2967 3395 3,217.42
Colombian 5132 5961 5,457.25
Darjeeling 2926 3281 3,112.67
Decaf Espresso 3181 3493 3,326.83
Decaf Irish Cream 2463 2901 2,648.25
Earl Grey 2730 3005 2,841.83
Green Tea 1339 1476 1,398.75
Lemon 3851 4418 4,080.83
Mint 1388 1669 1,519.17
Regular Espresso 890 1218 1,023.42

10.7.3 Combining the data.frame

Next, use the code chunk below to add the statistics on the table.

Code
spark <- report %>%
  group_by(Product) %>%
  summarize('Monthly Sales' = list(Sales),
            .groups = "drop")
sales <- report %>%
  group_by(Product) %>%
  summarise("Min" = min(Sales, na.rm = T),
            "Max" = max(Sales, na.rm = T),
            "Average" = mean(Sales, na.rm = T)
            )
sales_data = left_join(sales, spark)

10.7.4 Plotting the updated data.table

Code
sales_data %>%
  gt() %>%
  gt_plt_sparkline('Monthly Sales',
                   same_limit = FALSE)
Product Min Max Average Monthly Sales
Amaretto 1016 1210 1119.000 1.2K
Caffe Latte 1398 1653 1528.333 1.5K
Caffe Mocha 3322 3828 3613.917 3.7K
Chamomile 2967 3395 3217.417 3.3K
Colombian 5132 5961 5457.250 5.5K
Darjeeling 2926 3281 3112.667 3.0K
Decaf Espresso 3181 3493 3326.833 3.2K
Decaf Irish Cream 2463 2901 2648.250 2.7K
Earl Grey 2730 3005 2841.833 3.0K
Green Tea 1339 1476 1398.750 1.5K
Lemon 3851 4418 4080.833 4.4K
Mint 1388 1669 1519.167 1.5K
Regular Espresso 890 1218 1023.417 1.1K

10.7.5 Combining bullet chart and sparklines

Code
bullet <- coffeechain %>%
  filter(Date >= "2013-01-01") %>%
  group_by(`Product`) %>%
  summarise(`Target` = sum(`Budget Sales`),
            `Actual` = sum(`Sales`)) %>%
  ungroup()
sales_data = sales_data %>%
  left_join(bullet)
sales_data %>%
  gt() %>%
  gt_plt_sparkline('Monthly Sales') %>%
  gt_plt_bullet(column = Actual,
                target = Target,
                width = 28,
                palette = c("lightblue",
                          "black")) %>%
  gt_theme_538()
Product Min Max Average Monthly Sales Actual
Amaretto 1016 1210 1119.000 1.2K
Caffe Latte 1398 1653 1528.333 1.5K
Caffe Mocha 3322 3828 3613.917 3.7K
Chamomile 2967 3395 3217.417 3.3K
Colombian 5132 5961 5457.250 5.5K
Darjeeling 2926 3281 3112.667 3.0K
Decaf Espresso 3181 3493 3326.833 3.2K
Decaf Irish Cream 2463 2901 2648.250 2.7K
Earl Grey 2730 3005 2841.833 3.0K
Green Tea 1339 1476 1398.750 1.5K
Lemon 3851 4418 4080.833 4.4K
Mint 1388 1669 1519.167 1.5K
Regular Espresso 890 1218 1023.417 1.1K

10.8 Interactive Information Dashboard Design: reactable and reactablefmtr methods

In this section, you will learn how to create interactive information dashboard by using reactable and reactablefmtr packages. Before getting started, it is highly recommended for you to visit the webpage of these two packages and review all the materials provided on the webpages at least once. You done not have to understand and remember everything provided but at least have an overview of the purposes and functions provided by them.

In order to build an interactive sparklines, we need to install dataui R package by using the code chunk below.

Code
remotes::install_github("timelyportfolio/dataui")

Next, you all need to load the package onto R environment by using the code chunk below.

Code
library(dataui)

10.8.1 Plotting interactive sparklines

Similar to gtExtras, to plot an interactive sparklines by using reactablefmtr package we need to prepare the list field by using the code chunk below.

Code
report <- report %>%
  group_by(Product) %>%
  summarize(`Monthly Sales` = list(Sales))

Next, react_sparkline will be to plot the sparklines as shown below.

Code
reactable(
  report,
  columns = list(
    Product = colDef(maxWidth = 200),
    `Monthly Sales` = colDef(
      cell = react_sparkline(report)
    )
  )
)

10.8.2 Changing the pagesize

By default the pagesize is 10. In the code chunk below, arguments defaultPageSize is used to change the default setting.

Code
reactable(
  report,
  defaultPageSize = 13,
  columns = list(
    Product = colDef(maxWidth = 200),
    `Monthly Sales` = colDef(
      cell = react_sparkline(report)
    )
  )
)

10.8.3 Adding points and labels

In the code chunk below highlight_points argument is used to show the minimum and maximum values points and label argument is used to label first and last values.

Code
reactable(
  report,
  defaultPageSize = 13,
  columns = list(
    Product = colDef(maxWidth = 200),
    `Monthly Sales` = colDef(
      cell = react_sparkline(
        report,
        highlight_points = highlight_points(
          min = "red", max = "blue"),
        labels = c("first", "last")
        )
    )
  )
)

10.8.4 Adding reference line

In the code chunk below statline argument is used to show the mean line.

Code
reactable(
  report,
  defaultPageSize = 13,
  columns = list(
    Product = colDef(maxWidth = 200),
    `Monthly Sales` = colDef(
      cell = react_sparkline(
        report,
        highlight_points = highlight_points(
          min = "red", max = "blue"),
        statline = "mean"
        )
    )
  )
)

10.8.5 Adding bandline

Instead adding reference line, bandline can be added by using the bandline argument.

Code
reactable(
  report,
  defaultPageSize = 13,
  columns = list(
    Product = colDef(maxWidth = 200),
    `Monthly Sales` = colDef(
      cell = react_sparkline(
        report,
        highlight_points = highlight_points(
          min = "red", max = "blue"),
        line_width = 1,
        bandline = "innerquartiles",
        bandline_color = "green"
        )
    )
  )
)

10.8.6 Changing from sparkline to sparkbar

Instead of displaying the values as sparklines, we can display them as sparkbars as shown below.

Code
reactable(
  report,
  defaultPageSize = 13,
  columns = list(
    Product = colDef(maxWidth = 200),
    `Monthly Sales` = colDef(
      cell = react_sparkbar(
        report,
        highlight_bars = highlight_bars(
          min = "red", max = "blue"),
        bandline = "innerquartiles",
        statline = "mean")
    )
  )
)
